UV sterilizer, 530 Lpm, 316 SS, 75mm connection

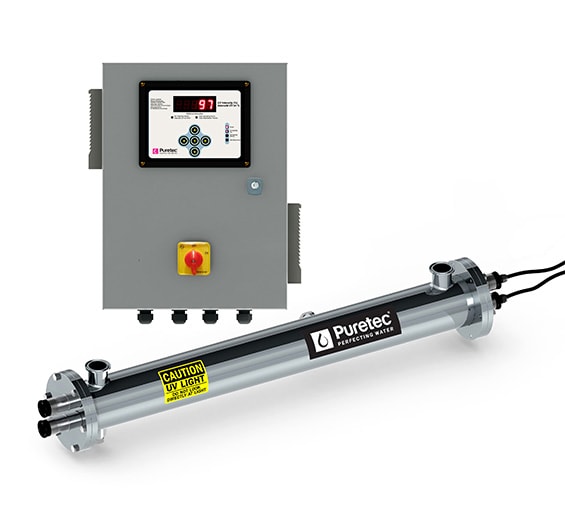

Puretec Radfire RI-60K | Industrial UV Water Treatment System

Puretec RI-60K ultraviolet disinfection systems are ideal for microbiological protection in your industrial application. Constructed with highly polished 316L stainless steel reactors and industrial grade enclosures, it uses proven low pressure amalgam (LP-AM) lamp technology offering stable output in both hot and cold water applications.

Covering a wide variety of applications in both regulated and unregulated markets, RI Series offers environmentally friendly disinfection at lower capital and operating costs than traditional disinfection solutions.

Price: $19,681.78Incl. GST*

*Price listed is suggested retail price. Reseller price may vary.

Find a Puretec Dealer

Features & Benefits

• Colour user interface with full diagnostics and warnings.
• “Future-proof” expandability port for future upgrades and options.
• Axial flow, 316L stainless steel reactor, polished reactors with integral sensor port to allow for sensor upgradeability in the future.
• Universal input, constant current electronic controller in a splash-proof case.
• 12,000 hour lamp life.

Specifications

Ordering Code

RI-60K

Flow Rate @ 16 mJ/cm² @ 95% UVT

996 Lpm

Flow Rate @ 30 mJ/cm² @ 95% UVT

530 Lpm

Flow Rate @ 40 mJ/cm² @ 95% UVT

401 Lpm

Connection

3” MNPT

Replacement Lamp

RL60K (2x required)

Replacement Sleeve

RQS60K

Operating Temperature

2 - 60°C (36 - 148°F)

Power Supply

230V / 50-60Hz

Warranty

2 years^

Accessories

RI-SEN3 - UV sensor module, suits RI-37K
RI-TMV - Water temperature management valve, ½” BSP
RI-MC37K - UV remote monitor cable, 10m, suits RI-37K, RI-60K
